Horizontal Machining Centers

Industry-leading high-precision performance optimized for speed, rigidity and reliability.

With superior performance that is distinctly JTEKT Toyoda, we manufacture state-of-the-art horizontal machining centers for efficient production and high-precision machining. JTEKT Toyoda horizontal machining centers provide industry-leading speed, rigidity, and accuracy to keep machine shops productive.

Toyoda Advantage ROI Justification MACHINE SELECTOR
FH630SXi Horizontal Machining Center

Full Line of Horizontal Machining Centers

FH400J Horizontal Machining Center

400-450mm Pallet

Pallet Range
15.7" sq. (400mm) to 17.7" sq. (450mm)
880 lb (400 kg) Capacity
Ø24.80" x 29.53" (Ø630 mm x 750 mm) to
Ø24.80" x 35.43" (Ø630 mm x 900 mm)

View Models
FH500J Horizontal Machining Center

500-550mm Pallet

Pallet Range
19.68" sq. (500mm) to 21.65" sq. (550mm)
1,760 lb (800 kg)
Ø31.50" x 39.37" (Ø800 mm x 1,000 mm) to
Ø33.46" x 39.37" (Ø850 mm x 1,000 mm)

View Models

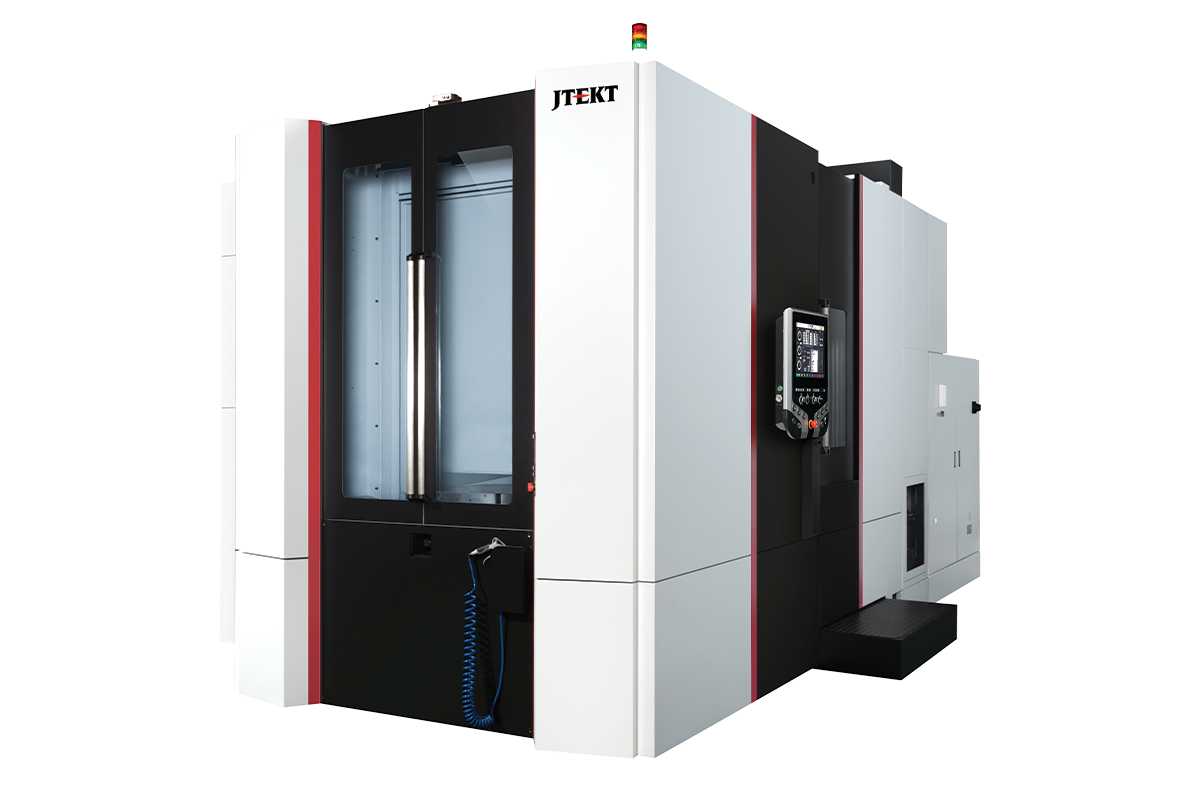

FH630SXi Horizontal Machining Center

630mm Pallet

Pallet Range
24.8" sq. (630mm)
3,310 lb (1,500 kg)
Ø46.06" x 49.21" (Ø1,170 mm x 1,250 mm)

View Models
FH800SXi Horizontal Machining Center

800mm Pallet

Pallet Range
31.5" sq (800mm)
5,500 lb (2,500 kg)
Ø39.4" x 25.6" (Ø1,000 mm x 650 mm) to
Ø63" x 51.2" (Ø1,600 mm x 1,300 mm)

View Models
FH1000SX Horizontal Machining Center

1000-1050mm Pallet

Pallet Range
39.4" sq. (1000mm) to 41.3" (1050mm)
6,600 lb (3,000 kg)
Ø70.9" x 63" (Ø1,800 mm x 1,600 mm) to
Ø72.8" x 61" (Ø1,850 mm x 1,550 mm)

View Models

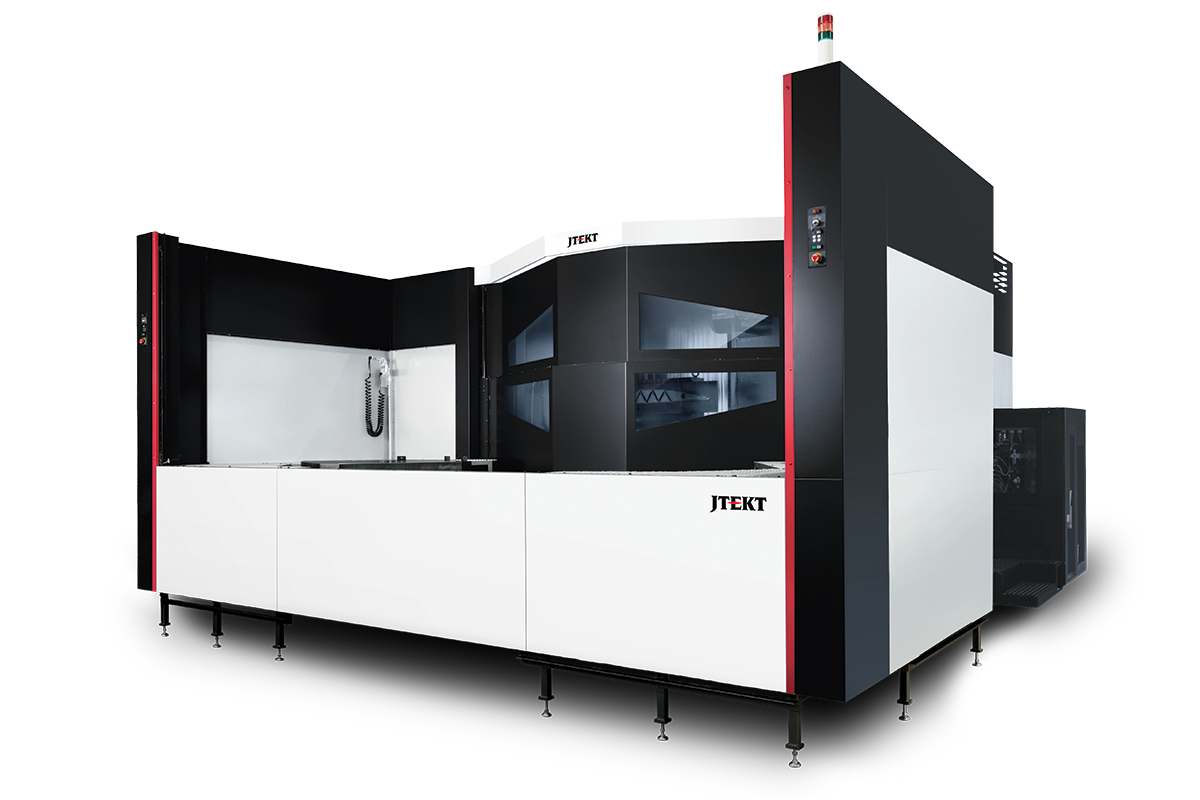

FH1250SX Horizontal Machining Center

1250mm Pallet

Pallet Range
49.2" sq. (1,250mm)
11,000 lb (5,000 kg)
Ø94.5" x 70.9" (Ø2,400 mm x 1,800 mm)

View Models
FH1600SWi Horizontal Machining Center

1600mm Pallet

Pallet Range
63" x 49.2" (1,600 mm x 1,250 mm)
17,600 lb (8,000 kg) (Opt. 32,000 lb)
Ø126" x 83" (Ø3,200 mm x 2,100 mm)

View Models
