FH5000 Series
Pallet Size: 21.65 x 21.65
X-axis Travel: 31.5-35.4 in
Y-axis Travel: 31.50 in
Z-axis Travel: 34.6 in
FH630SX-i
Pallet Size: 24.80 x 24.80 in
X-axis Travel: 41.34 in
Y-axis Travel: 35.43 in
Z-axis Travel: 41.34 in
FH800SX-i
Pallet Size: 31.50 x 31.50 in
X-axis Travel: 57.09 in
Y-axis Travel: 49.21 in
Z-axis Travel: 61.02 in
FH1000SX
Pallet Size: 39.37 x 31.5 in
X-axis Travel: 62.99 in
Y-axis Travel: 55.11 in
Z-axis Travel: 72.83 in
FH12500SX-i Direct Drive
Pallet Size: 49.21 x 49.21 in
X-axis Travel: 94.4 in
Y-axis Travel: 70.8 in
Z-axis Travel: 72.8 in
FH12500 Gear/Quill
Pallet Size: 49.21 x 49.21 in
X-axis Travel: 94.4 in
Y-axis Travel: 63.00 in
Z-axis Travel: 72.8 in
W-axis Travel (quill spindle): 22.00 in
FH1600SW-i
Pallet Size: 49.21 x 62.99 in
X-axis Travel: 118.11 in
Y-axis Travel: 74.80 in
Z-axis Travel: 82.68 in
W-axis Travel: 29.5 in
FH630SX-i 5-Axis
Pallet Size: 24.8 x 24.8 in
X-axis Travel: 31.49 in
Y-axis Travel: 33.46 in
Z-axis Travel: 41.33 in
FA1050S 5-Axis
Pallet Size: 41.33 x 41.33 in
X-axis Travel: 59.05
Y-axis Travel: 55.11 in
Z-axis Travel: 45.27 in
FH1250SX 5 Axis
Pallet Size: 49.21 x 49.21 in
X-axis Travel: 86.61 in
Y-axis Travel: 62.99 in
Z-axis Travel: 72.83 in
UG630
Table Size: 25.5 in
X-axis Travel: 25.1 in
Y-axis Travel: 20.4 in
Z-axis Travel: 18.1 in
UG800
Table Size: 31.5 in
X-axis Travel: 31.5 in
Y-axis Travel: 37.4 in
Z-axis Travel: 25.6 in
UA2090Ti
X-axis Travel: 78.7 in
Y-axis Travel: 35.4 in
Z-axis Travel: 27.5
Spindle Speed Max: 8,000 RPM
AA Series
Table Size (Width): 51.2-84.6 in
Table Size (length): 25.6-35.4 in
X-axis Travel: 43.4-78.7 in
Y-axis Travel: 25.6-35.4 in
Z-axis Travel: 23.6-35.4 in
AQ Series
Table Size (width): 39.4-68.9 in
Table Size (length): 20.1-25.6 in
X-axis Travel: 31.5-63 in
Y-axis Travel: 20.1-25.6 in
Z-axis Travel: 20.1-24 in

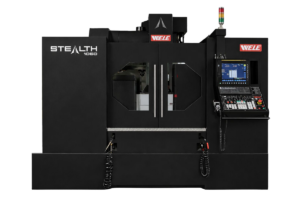

STEALTH 1060
X-Axis Travel: 40.2 in.
Y-Axis Travel: 23.6 in.
Z-Axis Travel in: 23.6 in.
740V-PRO
Table Size (width): 35.4 in
Table Size (length): 15.7 in
X-axis Travel: 29.5 in
Y-axis Travel: 16.7 in
Z-axis Travel: 18.5 in
1060V-PRO
Table Size (width): 47.2 in
Table Size (length): 23.6 in
X-axis Travel: 39.4 in
Y-axis Travel: 23.6 in
Z-axis Travel: 23.6 in
MCV450-XL
Table Size (width): 39.4 in
Table Size (length): 17.72 in
X-axis Travel: 31.5 in
Y-axis Travel: 17.72 in
Z-axis Travel: 19.7 in
Gemini Series
Table Size (width): 47.2 in
Table Size (length): 18.9 in
X-axis Travel: 23.6 in
Y-axis Travel: 17.7 in
Z-axis Travel: 23.6 in
DTC Series
Table Size (width): 29.5-47.2 in
Table Size (length): 15.7-19.7 in
X-axis Travel: 19.7-39.4 in
Y-axis Travel: 15.7-19.7 in
Z-axis Travel: 12.6 in
TCV-540
Table Size (width): 29.2 in
Table Size (length): 15.75 in
X-axis Travel: 19.7 in
Y-axis Travel: 15.75 in
Z-axis Travel: 12.6 in
G1 Series
Distance Between Centers: 9.8 in
Swing Over Table: 7.8 Ø in
Grinding Diameter (Max): 2.3 in
Wheel Surface Speed: 6,500 SFPM
G3 Series
Distance Between Centers: 19.6 - 78.7 in
Swing Over Table: 12.6 Ø in
Grinding Diameter (Max): 11.8 in
Wheel Surface Speed: 6,500 SFPM
GE Series
Distance Btw. Centers: 39.4-157.4 in
Swing Over Table: 22.0 Ø in
Grinding Diameter (Max): 21.6 in
Wheel Surface Speed: 6,500 SFPM
GL Series
Distance Btw. Centers: 12.6-98.4 in
Swing Over Table: 12.6-15.7 Ø in
Grinding Diameter (Max): 8.6-11.8 in
C6040E
Grinding Capacity O.D: 0.16 ～ 4.72 in
Grinding Wheel Size O.D: 24.01 in
Grinding Wheel Size (Width): 15.94 in
Floor Space (WxD): 110.63 x 96.65 in
Machine Weight: 22,050 lb
30/45/60 Series
Grind Cap. O.D: .0197～.19-.20～5.90 in
Grinding Wheel Size (W): 1.18-24.01 in
Machine Weight: 2,205-24,255 lb
KC Series
Grind Wheel Size (W): 1.18-31.89 in
Machine Weight: 3,528-28,665 lb
Shoe-Type Grinders
Grind Cap. O.D. (Max): 0.74-9.05 in
Grind Cap. T (Max): 0.70-5.12 in
Machine Weight: 7,717-14,332 lb
GC Series (Camshaft)
Distance Btw. Centers: 13.8-78.7 in
Swing Over Table: 12.6 in
Grinding Diameter (Max): 11.8-13.7 in
Wheel Surface Speed: 4.7 SFPM
GF Series (Crankshaft)
Distance Btw. Centers: 9.84-55.1 in
Swing Over Table: 6.29-19.7 in
Grinding Diameter (Max): 3.3-6.2 in
Wheel Surface Speed: 3.1-4.7 in
GOP / GUP Series
Distance Btw. Centers: 19.7-50 in
Swing Over Table: 12.6 in
Grinding Diameter (Max): 8.6 in
Wheel Surface Speed: 6,500 SFPM
GE4i Inter Series
Swing Over Table: 12.6 Ø in
Grinding Diameter (Max): 11.8 in
Workpiece Length: 19.6-78.7 in
Machining I.D.: 5.9 in
KIH Series
Grind Cap. I.D. (Max): 0.39 ～ 3.15 in
Grinding Cap. T (Max): 1.97 in
Grind Wheel Size: O.D. (Max): 1.97 in
VG Series
Grind Cap. O.D. (Max): 7.08-5.90 in
Grind Cap. I.D. (Max): 3.93-4.33 in
Grind Cap. T (Max): 1.97-3.93 in
Machine Weight: 9,922-13,230 lb
VGM Series
Grinding Capacity: T (Max): 9.84 in
Machine Weight: 26,460-28,665 lb
VGF Series
Grind Cap. O.D. (Max): 13.78-15.75 in
Grinding Capacity: T (Max): 7.09 in
Machine Weight: 15,435-16,538 lb
G3VU Series
Grind Cap. O.D. (Max): 19.68-31.49 in
Grind Cap. I.D. (Max): 17.72-29.53 in
Grind Cap. T (Max): 23.62 in
Grind Wheel Size: O.D. (Max): 12.00 in
SWITCH Series
Distance Btw. Centers: 19.69-78.7 in
Swing Over Table: 12.6 Ø in
Grinding Diameter (Max): 11.8 in
Wheel Surface Speed: 8,500 SFPM
TG4 Series
Distance Btw. Centers: 12.6-24.8 in
Swing Over Table: 12.6 Ø in
Grind Diam. (Max): OD: 8.6 ID: 4.7 in
Wheel Surface Speed: 8,850 SFPM
Select G7 Series
Distance Btw. Centers: 98.4-157.4 in
Swing Over Table: 25.9 Ø in
Grinding Diameter (Max): 25.5 in
Wheel Surface Speed: 6,500 SFPM
R Series
Grind. Cap. O.D. (Max): 1.97-11.81 in
Grind Cap. T (Max): 0.118-11.81 in
Machine Weight: 1,102-22,050 lb
PVT1/PVT2
Grinding Capacity: O.D. (Max): 1.97 in
Grinding Capacity: T (Max): 0.118 in
Grind Wheel Size: O.D. (Max): 1.57 in
Floor Space (WxD): 23.62 x 51.18 in
Machine Weight: 1,102 lb
HD Series
Grind Cap. O.D. (Max): 1.97-5.90 in
Grind Cap. T (Max): 2.36-7.09 in
Machine Weight: 6,615-33,075 lb
KVD Series
Grind Cap. O.D. (Max): 0.39-8.66 in
Grind Cap. T (Max): 0.24-1.97 in
Machine Weight: 3,969-22,050 lb
MG Series
Grind Cap. O.D. (Max): 7.87 in
Grind Cap. T (Max): 3.15 in
Machine Weight: 30,870 lb
1G010 (Roller Drive End Face)
Contact for Details
SAM084 (Internal Groove)
Grind Cap. O.D. (Max): 4.13 in
Grind Cap. T (Max): 1.38 in
Floor Space (WxD): 53.15 x 73.03 in
Machine Weight: 8,820 lb
SG300SH (Outer Groove)
Grind Cap. O.D. (Max): 2.36 in
Grind Wheel Size: O.D. (Max): 11.81 in
Floor Space (WxD): 47.24 x 110.23 in
Machine Weight: 8,159 lb
GR7 (Roll Grinding)
Contact for Details
DXSG320 (Wafer Grinding)
Grind Cap. O.D. (Max): 7.87, 11.81 in
Floor Space (WxD): 74.80 x 100.79 in
Machine Weight: 11,025 lb
R631BM / R631DF (Wafer Grinding)
Grinding Capacity: O.D. (Max): 7.87 in
Grinding Capacity: T (Max): 0.098 in
Grind Wheel Size: O.D. (Max): 12.00 in
Floor Space (WxD): 66.54 x 107.09 in
Machine Weight: 13,230 lb
VB Series
Table Size: 82.6x55.1 - 161.4×70.8 in
X-Axis Travel: 79.5-158.2 in
Y-Axis Travel: 59.0-78.7 in
Z-Axis Travel: 31.5 in
RB Series
Table Size: 78.7×43.3 - 118×43.3 in
X-Axis Travel: 83.5-120.5 in
Y-Axis Travel: 47.2 in
Z-Axis Travel (Work Table): 31.5 in
SB Series
Table Size: 78.7×59 - 157.4×59 in
X-Axis Travel: 83.5 - 159.8 in
Y-Axis Travel: 63 in
Z-Axis Travel: 31.5 in
LB Series
Table Size: 118×78.7 - 236.2×94.5 in
X-Axis Travel: 120.5-238.5 in
Y-Axis Travel: 84.6-131.9 in
Z-Axis Travel: 31.5 in
UB Series
X-Axis Travel: 120.5-238.6 in
MG Series Gantry Mill
Table Size: 196.9×110.2 - 393.7×189 in
X-Axis Travel: 196.9-393.7 in
Y-Axis Travel: 118.1-196 in
Z-Axis Travel: 39.4 in
HB Series
Table Size (W×L): 56.7×63 - 63×78.7 in
X-Axis Travel: 78.7-118 in
Y-Axis Travel: 79.9-82.6 in
Z-Axis Travel: 51.2-59.1 in
W-Axis Travel: 19.7-27.5 in
NEX Series
X-axis Travel: 4.1-8.7 in
Z1-Axis Travel: 7.9-28 in
Max. Turning Diameter: 6.7-13.8 in
Max. Turning Length: 7.3-25 in
EX-2000 Series
X-axis Travel: 9.85 in
Z1-Axis Travel: 23.2 in
Max. Turning Diameter: 15.35 in
Max. Turning Length: 21.1 in
LA-200 Series
X-axis Travel: 6.9 in
Z1-Axis Travel: 14.7 in
Max. Turning Diameter: 9.84-12.6 in
Max. Turning Length: 11.8-23 in
LX-2500/3000 Series
X-axis Travel: 10.8 in
Y-axis Travel: 2 in
Z1-Axis Travel: 32-86.6 in
Max. Turning Diameter: 16.5-18.5 in
NX-2500 Series
X-axis Travel: 10.63 in
Y-axis Travel: 0-2.76 in
Z1-Axis Travel: 31.5 in
Max. Turning Diameter: 15.75 in
Max. Turning Length: 29.21 in
LT Series
X-axis Travel: 7.8 in
Y-axis Travel: 2 in
Z1-Axis Travel: 22.5 in
Max. Turning Diameter: 14.8 in
CSJ Series
X-axis Travel: 7.09 in
Z1-Axis Travel: 15.31 in
Max. Turning Diameter: 13.78 in
Max. Turning Length: 15.31 in

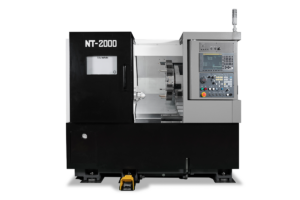

NT-2000/2500 Series
X-axis Travel: 7.09-7.87 in
Z1-Axis Travel: 20.87 in
Max. Turning Diameter: 11.02-14.17 in
Max. Turning Length: 16.25-18.98
LA-250/300 Series
X-axis Travel: 9.65-10 in
Y-axis Travel: 0-2 in
Z1-Axis Travel: 31.5-47.2 in
Max. Turning Diameter: 13.8-17.7 in
LA-350/450 Series
X-axis Travel: 11.4 in
Z1-Axis Travel: 33.4-90.2 in
Max. Turning Diameter: 18.72-21.7 in
Max. Turning Length: 27.8-84.5 in
LS-800 Series
X-axis Travel: 15.3 in
Y-axis Travel: 0-3.1 in
Z1-Axis Travel: 45.2-124 in
Max. Turning Diameter: 23.6-29.9 in
LS-1000 Series
X-axis Travel: 19.7 in
Z1-Axis Travel: 43.3-122 in
Max. Turning Diameter: 33.5-35.4 in
Max. Turning Length: 40.6-123 in
LS-1100 Series
X-axis Travel: 20.6 in
Z1-Axis Travel: 22-122 in
Max. Turning Diameter: 35.4 in
Max. Turning Length: 83.2-175.7 in
MX Series
X-axis Travel: 8.8 in
Y-axis Travel: 2 in
Z1-Axis Travel: 10.43 in
Z2-Axis Travel: 31.89 in
Max. Turning Diameter: 12.2 in
FX Series
X-axis Travel: 7.1-8.5 in
Z1-Axis Travel: 21.2-29.5 in
Z2-Axis Travel: 0-29.3 in
Max. Turning Diameter: 10.2-11.8 in
Max. Turning Length: 20-25.9 in
VTL Series
X-axis Travel: 10.4-25.6 in
Z1-Axis Travel: 18.5-44.9 in
Max. Turning Diameter: 18.1-47.2 in
Max. Turning Length: 16.4-39.4 in
VTC Series
X-Axis Travel: 46.5 in
Z1-Axis Travel: 35.4 in
Maximum Turning Diameter: 70.9 in
Maximum Turning Length: 47.2 in
GS Series
X-Axis Travel: 18.5 in
Y-Axis Travel: 14.2 in
Z-Axis Travel: 24.2 in
Rapid Feedrate: 1889 ipm
