Bridge Mills and Gantry Mills

Power and endurance for heavy jobs demanding accuracy and high productivity.

JTEKT Machinery bridge mills and gantry mills provide the power, stability, and durability required in machining large workpieces. This lineup features vibration-dampening Meehanite cast iron bases, effective coolant filtration systems, and fully-equipped Fanuc controls. Additionally, fully programmable five-face machining is available as an option.

JTEKT Advantage ROI Justification

Full Line of Bridge Mills and Gantry Mills

VB Series

Job Shop FANUC Oi Double Column Bridge Mill
X-Axis: 79.5" (2,020mm) to 158.2" (4,020mm)
Y-Axis: 59" (1,500mm) to 78.7" (2,000mm)
Z-Axis: 31.5" (800mm)
Spindle: #50 6,000 RPM Geared Head

View Models

VB Series

VB215
(X): 2m (Y): 1.5m (Z): 0.8m

VB315
(X): 3m (Y): 1.5m (Z): 0.8m

VB320
(X): 3m (Y): 2m (Z): 0.8m

VB420
(X): 4m (Y): 2m (Z): 0.8m

RB Series

FANUC 31i Double Column Bridge Mill
X-Axis: 83.5" (2,120mm) to 120.5" (3,060mm)
Y-Axis: 47.2" (1,200mm)
Z-Axis: 31.5" (800mm)
Spindle: #50 6K Geared or Highspeed Options

View Models

RB Series

RB212
(X): 2m (Y): 1.2m (Z): 0.8m

RB312
(X): 3m (Y): 1.2m (Z): 0.8m

SB Series

FANUC 31i Double Column Bridge Mill
X-Axis: 83.5" (2,120mm) to 159.8" (4,060mm)
Y-Axis: 63" (1,600mm) to 90.5" (2,300mm)
Z-Axis: 31.5" (800mm) to 39.3" (1000mm)
Spindle: Geared Head or Highspeed Options
Five-Face/Right Angle Head Capable

View Models

SB Series

SB216
(X): 2m (Y): 1.6m - 2.3m (Z): 0.8m

SB316
(X): 3m (Y): 1.6m - 2.3m (Z): 0.8m

SB416
(X): 4m (Y): 1.6m - 2.3m (Z): 0.8m

LB Series

FANUC 31i Double Column Bridge Mill
X-Axis: 120.5" (3,060mm) to 253.8" (10,000mm)
Y-Axis: 84.6" (2,150mm) to 157.5" (4,000mm)
Z-Axis: 31.5" (800mm) to 55.1" (1400mm)
Spindle: Geared Head or Highspeed Options
Five-Face/Right Angle Head Capable

View Models

LB Series

LB321
(X): 3m (Y): 2.1m - 2.8m (Z): 0.8m

LB421
(X): 4m (Y): 2.1m - 2.8m (Z): 0.8m

LB521
(X): 5m (Y): 2.1m - 2.8m (Z): 0.8m

LB325
(X): 3m (Y): 2.5m - 3.2m (Z): 0.8m

LB425
(X): 4m (Y): 2.5m - 3.2m (Z): 0.8m

LB Series (cont.)

FANUC 31i Double Column Bridge Mill
X-Axis: 120.5" (3,060mm) to 253.8" (10,000mm)
Y-Axis: 84.6" (2,150mm) to 157.5" (4,000mm)
Z-Axis: 31.5" (800mm) to 55.1" (1400mm)
Spindle: Geared Head or Highspeed Options
Five-Face/Right Angle Head Capable

View Models

LB Series (cont.)

LB525
(X): 5m (Y): 2.5m - 3.2m (Z): 0.8m

LB625
(X): 6m (Y): 2.5m - 3.2m (Z): 0.8m

LB433
(X): 4m (Y): 3.3m - 4m (Z): 0.8m

LB533
(X): 5m (Y): 3.5m - 4m (Z): 08m

LB633
(X): 6m (Y): 3m - 4m (Z): 0.8m

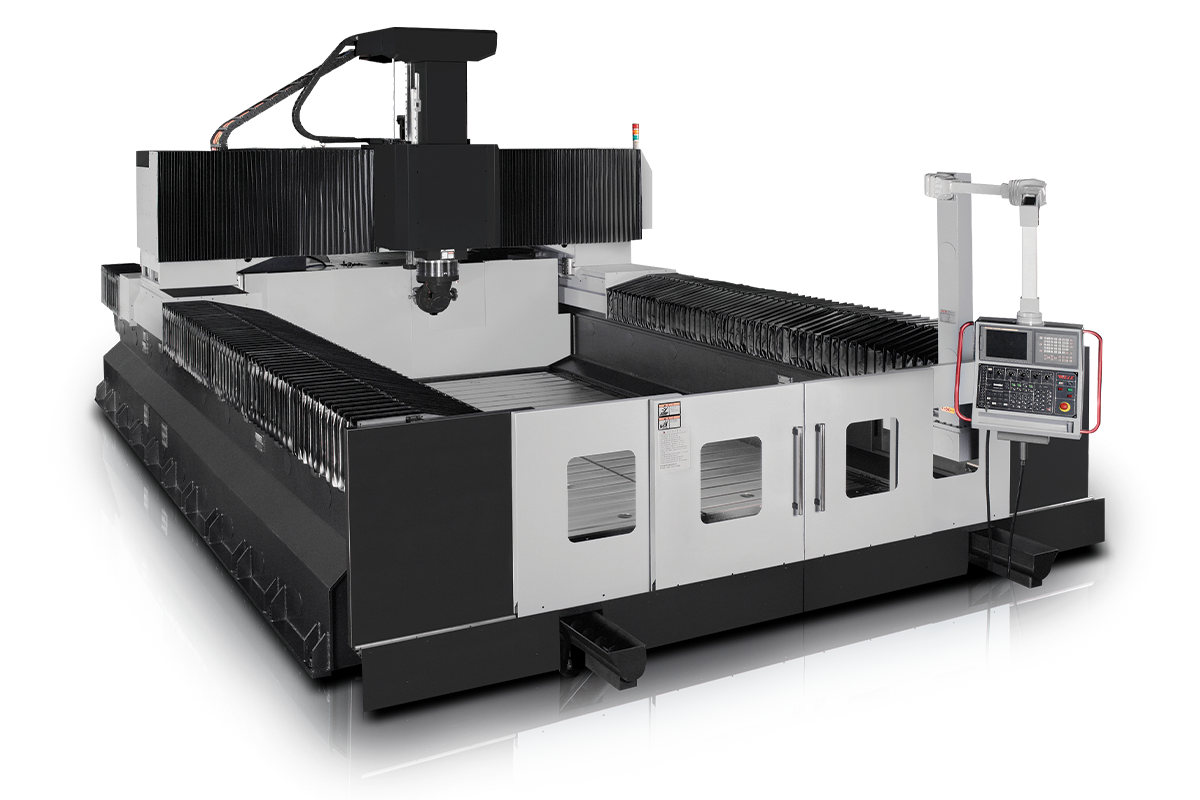

MG Series Gantry Mill

MG Series

FANUC 31i Moving Gantry Mill
X-Axis: 197" (5,000mm) to 787.4" (20,000mm)
Y-Axis: 118.1" (3,000mm) to 236.2" (6,000mm)
Z-Axis: 31.5" (800mm) to 55.1" (1400mm)
Spindle: Geared Head or Highspeed Options
Five-Face/Right Angle Head Capable

View Models

MG Series

MG530
(X): 5m (Y): 3m (Z): 1m

MG630
(X): 6m (Y): 3m (Z): 1m

MG830
(X): 8m (Y): 3m (Z): 1m

MG1030
(X): 10m (Y): 3m (Z): 1m

MG640
(X): 6m (Y): 4m (Z): 1m

MG Series Gantry Mill

MG Series (cont.)

FANUC 31i Moving Gantry Mill
X-Axis: 197" (5,000mm) to 787.4" (20,000mm)
Y-Axis: 118.1" (3,000mm) to 236.2" (6,000mm)
Z-Axis: 31.5" (800mm) to 55.1" (1400mm)
Spindle: Geared Head or Highspeed Options
Five-Face/Right Angle Head Capable

View Models

MG Series (cont.)

MG840
(X): 8m (Y): 4m (Z): 1m

MG1040
(X): 10m (Y): 4m (Z): 1m

MG650
(X): 6m (Y): 5m (Z): 1m

MG850
(X): 8m (Y): 5m (Z): 1m

MG1050
(X): 10m (Y): 5m (Z): 1m
