Vertical Machining Centers

High speed, high performance, and high load capacities machining centers to lower your cost per part.

For a variety of machining needs, including high-speed, heavy-duty, and 5-axis machining, JTEKT Machinery’s complete line of vertical machining centers delivers lasting performance. Due to a vibration-dampening Meehanite cast iron base and large precision spindle bearings, we offer shops increased rigidity while sustaining higher load capacities. Every vertical machining center features fully-equipped Fanuc controls for maximum machining capabilities.

Toyoda Advantage ROI Justification MACHINE SELECTOR

Full Line of Vertical Machining Centers

AA-65 Series

Production #40/#50 Taper Boxway
Fully-equipped Standard Fanuc Controls
X-Axis: 35.4" (900 mm) - 59.1" (1.500 mm)
Y-Axis: 25.6" (650 mm)
Z-Axis: 23.6" (600 mm)
Spindle: 6,000 RPM, 8,000 RPM, or 15,000 RPM

View Models

AA-80 Series

Production #50 Taper Boxway
Fully-equipped Standard Fanuc Controls
X-Axis: 55.1" (1,400 mm) - 63" (1,600 mm)
Y-Axis: 31.5" (800 mm)
Z-Axis: 27.6" (700mm) - 31.5" (800 mm)
Spindle: 6,000 RPM Geared or 10,000 RPM DD

View Models

FV-90 Series

Production #50 Taper Boxway
Fully-equipped Standard Fanuc Controls
X-Axis: 78.7" (2,000 mm)
Y-Axis: 35.4" (900 mm)
Z-Axis: 35.4" (900 mm)
Spindle: 6,000 RPM Geared or 10,000 RPM DD

View Models

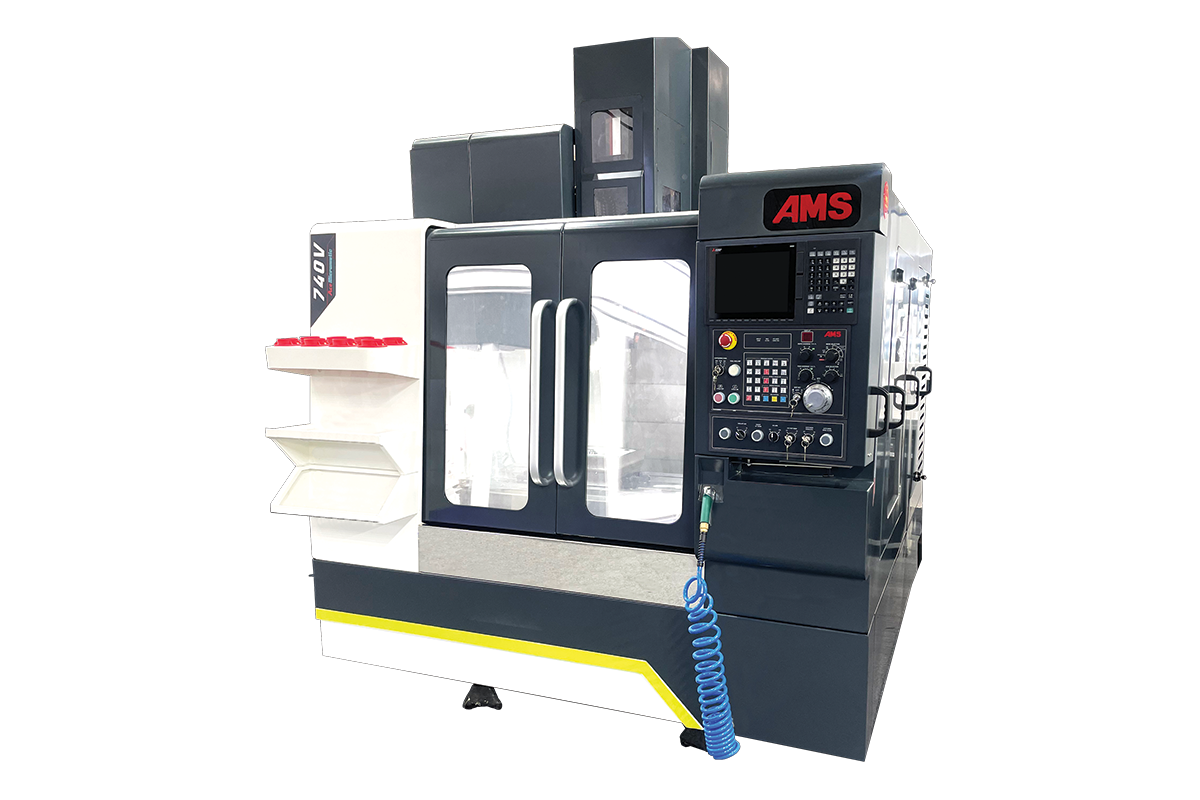

PRO Series

X-Axis Travel: 39.4" (1,000 mm)
Y-Axis Travel: 23.6" (600 mm)
Z-Axis Travel: 23.6" (600 mm)
Spindle: 12,000 RPM

View Models

AQ-S Die/Mold

X-Axis: 40.2" (1,020 mm) - 47.2" (1,200 mm)
Y-Axis: 20.1" (510 mm) - 25.6" (650 mm)
Z-Axis: 20.1" (510 mm) - 24.0" (610 mm)
Spindle: 12,000 RPM Direct Drive

View Models
AQ Series Cast Iron Body - Toyoda Vertical Machining Centers

AQ Series

X-Axis: 31.5" (800mm) to 63" (1,600mm)
Y-Axis: 20.1" (510mm) to 25.6" (650mm)
Z-Axis: 20.1" (510mm) to 24" (610mm)
Spindle: 15,000 RPM Direct Drive

View Models
MCV 450 with pallet changer

Integral Pallet Changing Machines

X-Axis Travel: 31.5" (800 mm)
Y-Axis Travel: 17.72" (450 mm)
Z-Axis Travel: 19.7" (500 mm)
Spindle: 12,000 RPM

View Models
GEMINI MAX Twin Spindle Machining Center

Twin Spindle

X-Axis: 19.7" (500 mm) - 29.5" (750 mm)
Y-Axis: 17.7" (450 mm) - 19.6" (500 mm)
Z-Axis: 18.8" (480 mm) - 23.6" (600 mm)

View Models
DTC400XL Drill Tap Machining Center

Drill Tap Centers

The DTC machines are designed for drill tap applications and full milling capabilities.

View Models
UB 6022 PCB Machine

PCB Drilling Machines

High speed multi-spindle drilling machines designed for Printed Circuit Board (PCB), metals, plastics, etc.

View Models
