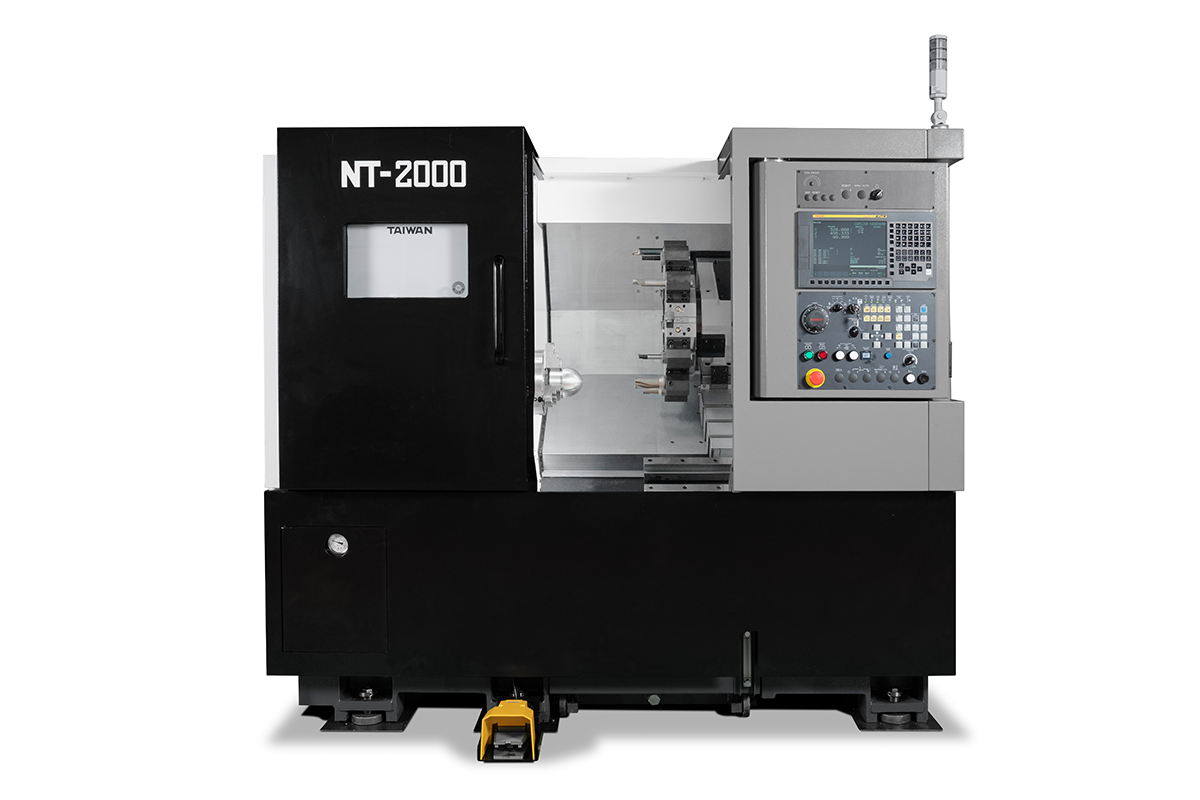

NT-2000 / NT2500 Series

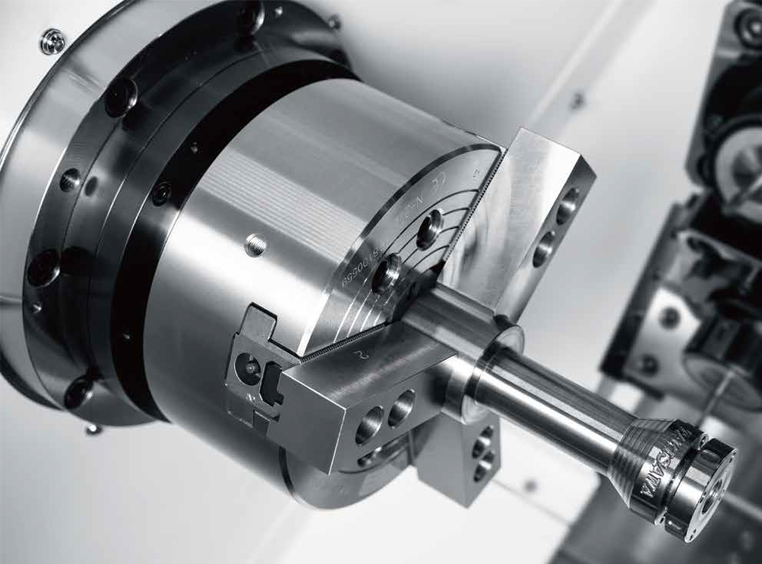

The NT-2000/NT-2500 Series is equipped with high-rigidity spindle systems, ensuring consistent accuracy, controlled thermal behavior, and long-term reliability. This integrated design approach allows precise control over spindle performance—critical for maintaining stable machining conditions in both high-speed and heavy-duty applications.

To meet a wide range of production requirements, the NT Series offers multiple spindle configurations, each optimized for specific machining priorities:

• Built-in motor spindle – designed for smooth, high-speed operation with reduced vibration, ideal for precision finishing and applications requiring superior surface quality
• Pulley-driven spindle – a robust and efficient solution that balances performance and cost, well suited for general-purpose turning and stable continuous production
• High-torque spindle variants – engineered to deliver strong low-end torque for demanding roughing operations and difficult-to-machine materials

This range of options allows manufacturers to select the optimal combination of speed, torque, and cost-efficiency based on their specific application.

Performance is further supported by optimized speed and torque characteristics. With maximum speeds of up to 4,000 rpm (NT-2000) and 3,500 rpm (NT-2500), combined with motor outputs reaching 18.5 kW, the spindle delivers both responsive acceleration and sustained cutting power. Fast ramp-up and stable torque curves help reduce non-cutting time while ensuring consistent performance across varying machining conditions.

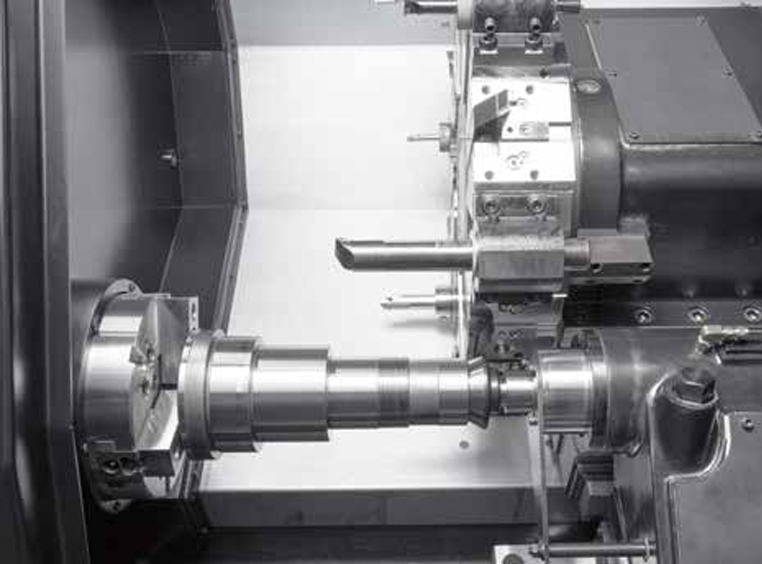

NT-2000/NT-2500 Series Tailstock options are designed to provide maximum stability and support for longer components and shaft-type workpieces - ensuring consistent machining accuracy, even under demanding cutting conditions. Its rigid construction minimizes deflection during operation, helping maintain tight tolerances and high surface quality across the entire workpiece length.

With a tailstock travel of 435 mm, the system offers ample range to accommodate a wide variety of part sizes and setups. The MT4 taper ensures secure and precise support, making it suitable for both general turning and more demanding applications requiring stable axial support.

To match different production environments, the NT Series offers flexible tailstock movement options:

• Manual tailstock for straightforward, operator-controlled positioning
• PIN carry (semi-automatic) tailstock for faster, more user-friendly operation and reduced setup time

This flexibility allows manufacturers to choose the right level of automation based on their workflow, improving efficiency without adding unnecessary complexity.

The tailstock is engineered to maintain stable contact pressure throughout machining, supporting reliable performance during long production runs. By reducing vibration and improving workpiece rigidity, it contributes directly to better tool life, improved surface finishes, and fewer machining errors.
