FA1050S 5-Axis
The FA1050S 5-Axis is a high-performance horizontal machining center engineered for precision, power, and versatility in complex part manufacturing. Designed with an advanced 5-axis trunnion table, the machine allows for full simultaneous multi-axis operations, enabling the machining of intricate geometries in a single setup. This significantly reduces cycle times and improves overall productivity for industries demanding high-accuracy performance, such as aerospace, energy, and heavy equipment manufacturing.
Equipped with a dual-drive mechanism on the trunnion table, the FA1050S ensures exceptional stability and load support for heavy workpieces. The high-resolution rotary encoders guarantee precise table positioning, maintaining consistent accuracy during simultaneous 5-axis machining. Combined with JTEKT’s high-torque spindle technology and a robust machine frame, the FA1050S 5-Axis delivers the reliability and precision necessary for the most demanding multi-surface machining applications.
Request a Quote
Robust Structure & Innovation
Engineered for precision and endurance, the FA1050S 5-Axis embodies JTEKT’s commitment to structural integrity and long-term accuracy. Its forged, high-rigidity column and thick-walled cast iron bed are designed to withstand the intense forces of heavy cutting while maintaining exceptional stability. The box-type bed construction provides superior damping characteristics, effectively minimizing vibration and thermal distortion to ensure consistent machining accuracy during prolonged operations.
The FA1050S integrates box guideways on all axes, featuring JTEKT’s unique static slide technology that maintains precision over years of operation. Dual Y-axis ballscrews operate in perfect tandem, delivering high-speed acceleration without deflection or backlash. A symmetrical column design minimizes thermal displacement, while integrated bed and guideways enhance rigidity during cutting. Together, these structural advancements create a foundation that ensures uncompromising precision, stability, and reliability for complex 5-axis machining applications.
Unmatched 5-Axis Spindle Technology

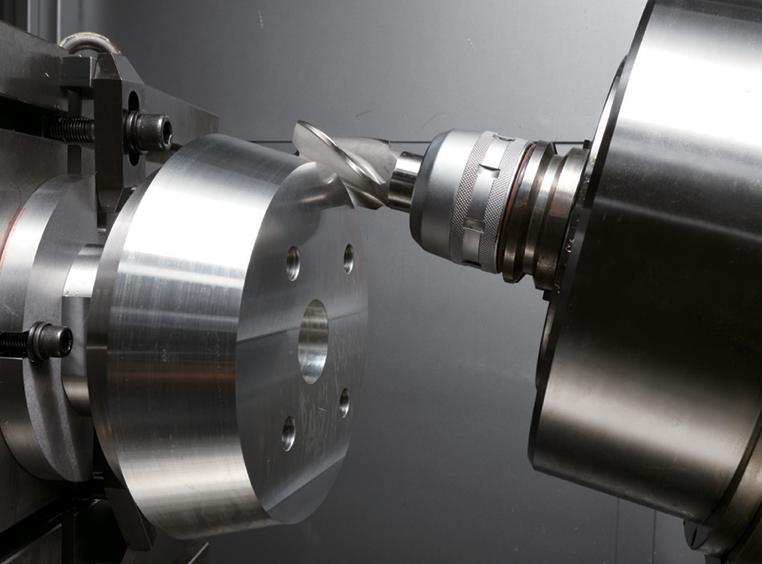

The FA1050S 5-Axis is equipped with JTEKT’s advanced spindle lineup, engineered for versatility and uncompromising performance in both heavy-duty and high-speed machining environments. Each spindle option is designed to deliver optimal cutting power, rigidity, and precision for a wide range of applications—from deep metal removal to fine surface finishing of complex parts.
Key Spindle Features:
- Standard 6,000 RPM Spindle – Ideal for large cutter operations, featuring a dual-row cylindrical roller bearing at the front for superior radial load capacity and exceptional resistance to impact and deflection.
- High-Torque Gear Spindle – Delivers up to 45 kW (60 HP) of power and 1,305.5 N·m (963 ft-lb) of torque for heavy-duty cutting of hard materials, combining strength and precision with a φ110 mm front bearing diameter and BT50 taper.
- Wide-Range Spindle – Provides high rigidity and rotational accuracy across low- and high-speed operations with a 15,000 RPM capability, 30/25 kW (40/33 HP) motor, 262.6 N·m (194 ft-lb) torque, and φ100 mm spindle diameter.
Simple Operation. Advanced Insight.
JTEKT’s TOYOPUC-Touch HMI is a fully functional touch screen overlay, running on FANUC 31iMB Plus. The system is easy to learn and navigate, and includes built in advanced functionality for machine operators, maintenance technicians, and manufacturing management.
Stay Ahead of the Curve With JTEKT Automation
From rail-guided vehicles to vertical pallet pools and advanced robotics – combining JTEKT’s renowned automation solutions with the FH12500SX-i will vastly transform your production processes, leading to new levels of manufacturing efficiency. From managing multiple machines through a central PC for production scheduling, to slashing set-up times and improving throughput – our highly flexible automation solutions are designed to streamline operations and increase capacity.
Models & Specifications
| Pallet Size | in (mm) | 41.33 x 41.33 (1,050 x 1,050) |
| X-axis Travel (column) | in (mm) | 59.05 (1,500) |
| Y-axis Travel (spindle head) | in (mm) | 55.11 (1,400) |
| Z-axis Travel (work table) | in (mm) | 45.27 (1,150) |
| Max. Workpiece Swing (diameter) | in (mm) | 51.18 (1,300) |
| Max. Workpiece Height | in (mm) | 32.48 (825) |
| Maximum Load on Pallet | lb (kg) | 4,400 (2,000) |
| Spindle Speed | RPM | 6,000, 8,000, 15,000 |
| Spindle Taper | - | CAT50 |
| Rapid Feedrate (X,Y and Z) | ipm (m/min) | 590 ipm (15 m/min), 944 ipm (24 m/min), 944 ipm (24 m/min) |
| Tool Storage Capacity | number | 60, 190, 240, 384 |
