LA-200 Series

LA-200 Turning Centers are engineered with a 30-degree slant bed design that not only enhances overall rigidity but also reduces the machine’s footprint—making it ideal for shops where space efficiency is critical. This slanted construction improves chip evacuation, ensures better ergonomics for the operator, and provides the structural strength needed for stable, high-precision machining.

For ease of maintenance, both the spindle motor and the lubrication tank are strategically positioned at the front of the machine, allowing quick access for service and reducing downtime. In addition, the box guideway design on the X and Z axes delivers outstanding dynamic rigidity and superior vibration damping. This heavy-duty construction minimizes chatter and maintains high accuracy even during aggressive, heavy-cutting operations, extending tool life and ensuring consistent part quality.

With its robust build and smart design features, the LA-200 is purpose-built to provide long-term accuracy, reliable performance, and easier serviceability—making it a dependable choice for continuous production environments.

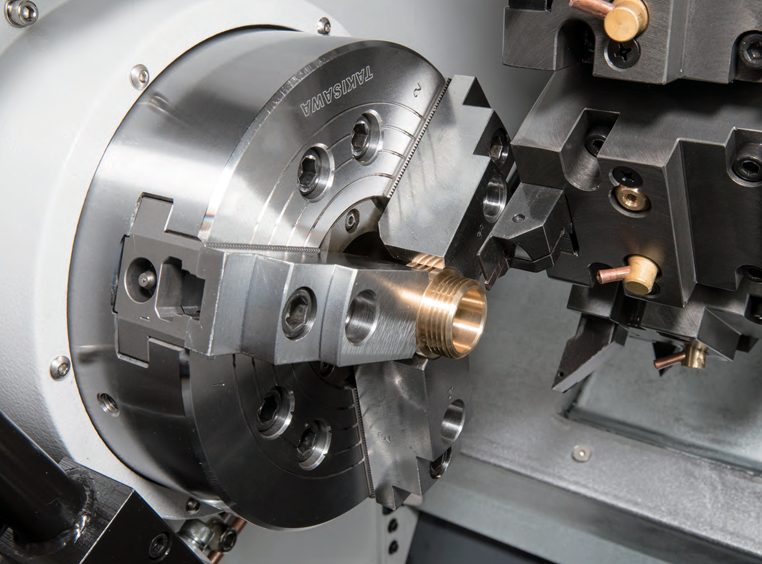

The spindles on LA-200 Turning Centers are engineered and manufactured entirely in-house by Taiwan Takisawa, ensuring the highest levels of quality, reliability, and long-term performance. By controlling the entire spindle production process, Takisawa maintains strict tolerances and consistency, giving manufacturers confidence in both accuracy and durability.

To accommodate a wide variety of machining applications, the LA-200 spindle can be configured based on customer requirements for precision, torque, speed, and cost efficiency. The belt-driven spindle design offers an economical and easy-to-maintain option, making it an excellent choice for shops that value low operating costs without sacrificing performance. At the same time, higher-performance spindle configurations are available for applications requiring maximum rigidity and cutting accuracy.

This flexible approach to spindle design ensures that the LA-200 Series can deliver the right balance of power, precision, and cost-effectiveness, making it a reliable solution for everything from general-purpose turning to more demanding production environments.

The LA-200 Turning Center is equipped with a high-rigidity tailstock body designed to provide strong, reliable support during machining of longer or heavier workpieces. The tailstock is fitted with a hydraulically driven quill, delivering consistent clamping force and dependable stability under load. Depending on the customer’s requirements, the tailstock can be configured with different drive types, ensuring the right balance of thrust capacity, precision, and cost efficiency for each application. For operations demanding greater holding power, a high-thrust or specialized quill design can also be customized to meet exact production needs.

To further improve productivity, an optional PIN-carried design is available, which allows for fast, servo-motor-driven positioning along the Z-axis. This automation-friendly approach enables quick and accurate adjustments, reducing setup and non-cutting time while shortening overall cycle times. The result is a tailstock system that not only increases machining accuracy and part concentricity, but also enhances throughput and efficiency across a wide range of turning applications.

With its combination of robust construction, customizable configurations, and servo-assisted positioning, the LA-200 tailstock system delivers both the strength and flexibility required for modern production environments.
