GOP GUP Machine

GOP / GUP Series

The GOP / GUP Series is designed to bring versatility and precision together in a single, compact platform. By integrating the essential functions of cylindrical grinding, plunge grinding, and transverse grinding, this series provides manufacturers with the flexibility to handle a wide variety of machining requirements without the need for multiple machines. Whether for simple applications or more complex processes, the GOP / GUP Series adapts seamlessly to the demands of modern production.

 Request a Quote
Models & Specs| News Request Quote

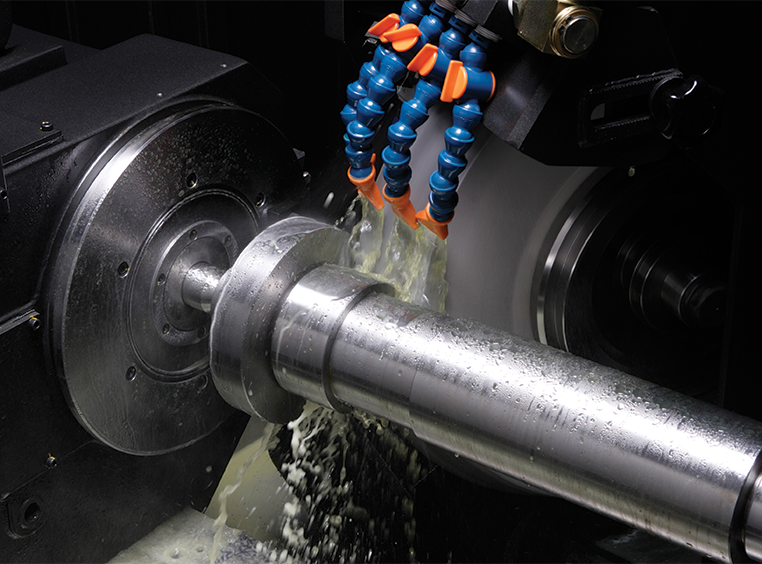

Grinder Coolant

Versatile & Accurate Cylindrical Grinding

Delivering high-speed accuracy of 0.016 µm, the GOP / GUP Series ensures superior surface finishes and precise dimensional control, even under continuous operation. To complement its advanced performance, the machine is equipped with an ergonomically designed operation panel that simplifies setup and operation, making it easier for operators to achieve consistent, high-quality results. With its combination of versatility, precision, and user-friendly design, the GOP / GUP Series provides a reliable solution that enhances productivity while maintaining uncompromising accuracy across every job.

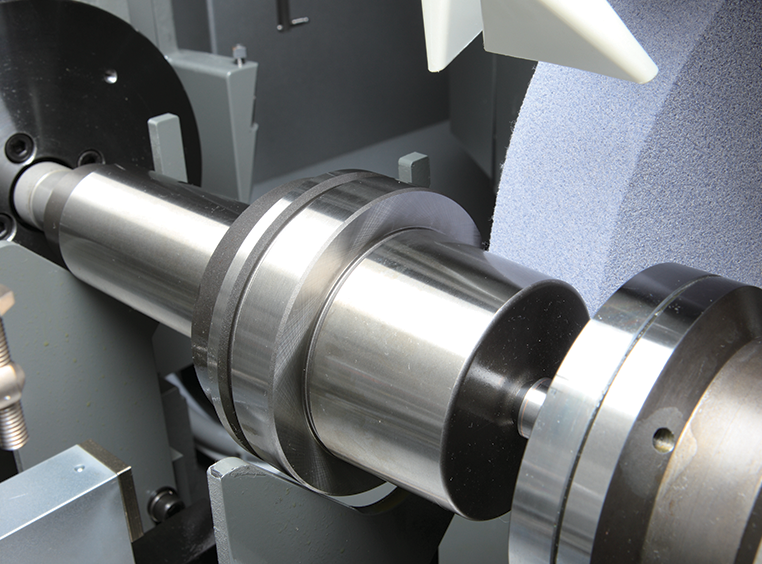

Stat bearing

Precision and Reliability at the Core

At the heart of the machine is the advanced STAT BEARING® wheelhead, engineered to deliver unmatched precision and long-term durability. Designed with no metal-to-metal contact, the bearing system virtually eliminates wear, significantly extending spindle life while ensuring consistent performance. Its exceptionally high rigidity and superior damping capacity suppress vibration and maintain stability during even the most demanding grinding applications, resulting in smooth operation and superior surface finishes.

To further enhance performance, the wheelhead minimizes heat generation, preserving accuracy over extended production runs. Powered by a robust 5 hp (3.7 kW) drive, it provides the strength needed for reliable, high-performance grinding.

Models & Specifications
Distance Between Centersin (mm)19.7 (500)
Swing Over TableØ in (mm)12.6 (320)
Grinding Diameter (Max)in (mm)8.6 (220)
Wheel Surface SpeedSFPM (m/s)6,500 (30)
Optional Wheel Surface SpeedSFPM (m/s)8,860 (45)
Distance Between Centersin (mm)39.3 (1000)
Swing Over TableØ in (mm)12.6 (320)
Grinding Diameter (Max)in (mm)8.6 (220)
Wheel Surface SpeedSFPM (m/s)6,500 (30)
Optional Wheel Surface SpeedSFPM (m/s)8,860 (45)
Distance Between Centersin (mm)59 (1500)
Swing Over TableØ in (mm)12.6 (320)
Grinding Diameter (Max)in (mm)8.6 (220)
Wheel Surface SpeedSFPM (m/s)6,500 (30)
Optional Wheel Surface SpeedSFPM (m/s)8,860 (45)
