Developed by ACE Designers, the LT-2 MSY Turn-Mill Center is a high-precision CNC turning solution engineered to deliver exceptional versatility and productivity. Equipped with full C-axis capability, the LT-2 MSY provides precise contouring, indexing, and positioning, enabling it to handle a wide range of complex machining tasks with confidence.
Designed for true multi-tasking performance, the LT-2 MSY allows turning, milling, drilling, and tapping operations to be performed in a single setup. By consolidating multiple processes into one machine cycle, it eliminates the need for secondary operations, reduces part handling, and significantly improves overall machining accuracy. This integration not only boosts throughput but also shortens lead times and reduces floor space requirements, making it a powerful choice for manufacturers seeking maximum efficiency. With its combination of rigid construction, precision engineering, and advanced process capability, the LT-2 MSY is ideally suited for shops that require flexible, high-performance machining solutions to stay competitive in today’s demanding production environments.
Request a Quote
Built for Multi-Process Efficiency
Engineered for productivity, the LT-2 MSY features high rapid traverse rates on both axes, reducing non-cutting time and boosting overall throughput. A rigid cartridge-type spindle delivers superior stability and accuracy during cutting, while safety clutches on both axes provide an added layer of protection for the machine and tooling under unexpected load conditions.

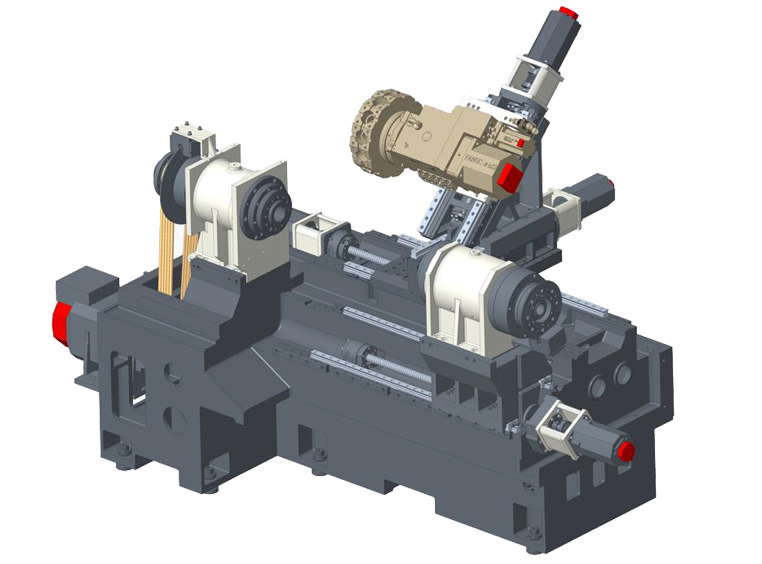

The foundation of the machine is a finely engineered bed made from grade 25 fine-grain cast iron, selected for its excellent vibration-damping characteristics. The bed is heavily ribbed for maximum rigidity and has been thermally seasoned to ensure long-term dimensional stability, preventing deformation even after years of demanding use. Its geometry is carefully designed to promote efficient chip flow and removal, with the option of chip evacuation from either the rear or the side, allowing manufacturers to adapt the machine seamlessly to their plant layout. With its combination of rigid construction, advanced spindle design, safety systems, and operator-friendly features, the LT-2 MSY delivers both the precision and durability required for continuous production in today’s competitive manufacturing environments.
Precision-Engineered Spindle for Superior Accuracy
The LT-2 MSY is equipped with a high-precision cartridge-type spindle, designed to deliver exceptional stiffness, accuracy, and long-term reliability. The spindle assembly is built with super-precision cylindrical roller bearings—a front bearing for superior rigidity and a rear bearing for axial and radial stability—ensuring outstanding performance even under heavy cutting conditions. The spindle provides precise indexing in controlled increments for accurate part positioning, while a powerful braking system locks the spindle securely during live-tool operations, disengaging automatically during turning or indexing. With full C-axis functionality, the spindle enables bidirectional motion that can be interpolated with the X and Z axes, expanding the machine’s capability for complex contouring and multi-process machining.
Every spindle is assembled and tested in a controlled clean-room environment, guaranteeing consistency, reliability, and quality. Critical elements—including ball screws, bearings, CNC systems, and drives—are sourced from the world’s leading manufacturers, ensuring the LT-2 MSY spindle system delivers the precision, durability, and performance required for advanced production environments.
Powerful Multi-Tasking with Live Tooling
The LT-2 MSY is equipped with a robust 12-station servo turret designed for flexibility and precision in complex machining. Featuring a BMT55 Duplomatic disk-type design, the turret supports radial tools for both forward and backward machining, while all tool stations are capable of accommodating rotating tools for maximum versatility. A single servo motor powers both turret indexing and live tooling, ensuring fast, accurate tool changes and efficient operation. With Y-axis capability of +50 mm, the turret expands machining possibilities for off-center milling and drilling. The integrated live tooling system delivers impressive performance with a rotary tool speed of up to 5,000 rpm and 6 HP of rotary tool power, making it ideal for demanding applications that require productivity, precision, and reliability in a single setup.
Models & Specifications
| X-axis Travel | in (mm) | 7.8 (198) |
| Y-axis Travel | in (mm) | 2 (51) |
| Z1-Axis Travel | in (mm) | 22.5 (572) |
| Max. Turning Diameter | in (mm) | 14.8 (376) |
| Number of Tools | 12 | |
| Spindle Speed Max. | RPM | 5,000 / 4,000 |
| Milling Option | yes | |
| Number of Turrets | 1 | |
| Number of Spindles | 2 | |
| Sub Spindle | Yes |
