VG Series

The VG Series delivers precision grinding solutions tailored to the demands of the automotive and bearing industries. Designed for versatility, accuracy, and productivity, each model in the VG lineup offers unique capabilities to handle a wide range of part geometries, from ID and OD grinding to recessed surfaces and end faces.

Request a Quote

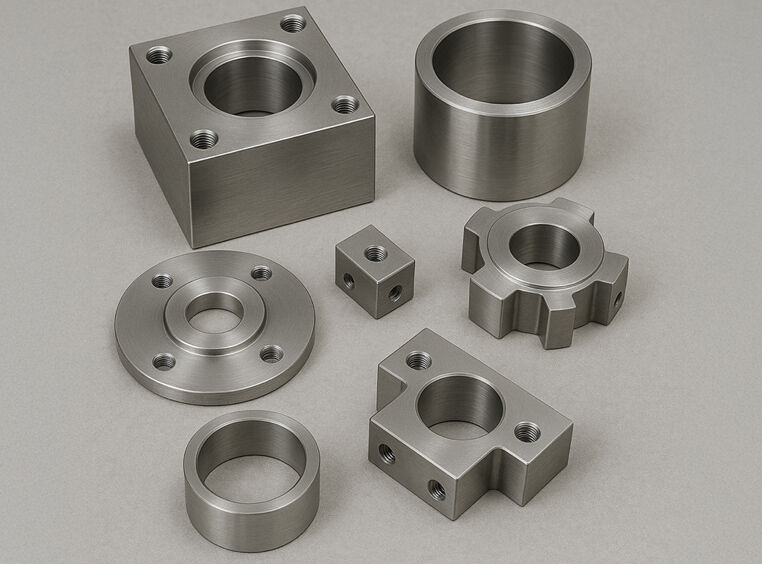

The lineup includes the VG50 for ID and recessed grinding of parts like inner rings and sprocket housings, the VG100 and VG100A for OD and recessed grinding of shafts, pistons, brackets, and rotors, and the VG300 for larger workpieces such as clutch plates and gear carriers. At the top, the VG300A adds angled-head end face grinding for components like inner rings and rotors.

Together, the VG Series provides a versatile platform that supports the precise machining of critical internal components, ensuring durability, reliability, and productivity in high-demand manufacturing environments.

Grinding Capacity: O.D. (Max)

in (mm)

7.08 (φ180)

Grinding Capacity: I.D. (Max)

in (mm)

3.93 (φ100)

Grinding Capacity: T (Max)

in (mm)

3.93 (100)

Grinding Wheel Size: O.D. (Max)

in (mm)

1.97 (φ50)

Floor Space: WxD

in (mm)

37.40 x 100.98 (950 × 2,565)

Machine Weight

lb (Kg)

9,922 (4,500)

Grinding Capacity: O.D. (Max)

in (mm)

5.90 (φ150)

Grinding Capacity: I.D. (Max)

in (mm)

4.33 (φ110)

Grinding Capacity: T (Max)

in (mm)

3.15 (80)

Grinding Wheel Size: O.D. (Max)

in (mm)

3.94 (φ100)

Floor Space: WxD

in (mm)

61.02 x 98.42 (1,550 × 2,500)

Machine Weight

lb (Kg)

13,230 (6,000)

Grinding Capacity: O.D. (Max)

in (mm)

5.90 (φ150)

Grinding Capacity: I.D. (Max)

in (mm)

Grinding Capacity: T (Max)

in (mm)

1.97 (50)

Grinding Wheel Size: O.D. (Max)

in (mm)

12.00 (φ305)

Floor Space: WxD

in (mm)

61.02 x 100.98 (1,550 × 2,565)

Machine Weight

lb (Kg)

13,230 (6,000)

Grinding Capacity: O.D. (Max)

in (mm)

5.90 (φ150)

Grinding Capacity: I.D. (Max)

in (mm)

Grinding Capacity: T (Max)

in (mm)

1.97 (50)

Grinding Wheel Size: O.D. (Max)

in (mm)

12.00 (φ305)

Floor Space: WxD

in (mm)

61.02 x 100.98 (1,550 × 2,565)

Machine Weight

lb (Kg)

13,230 (6,000)
