TCV-540

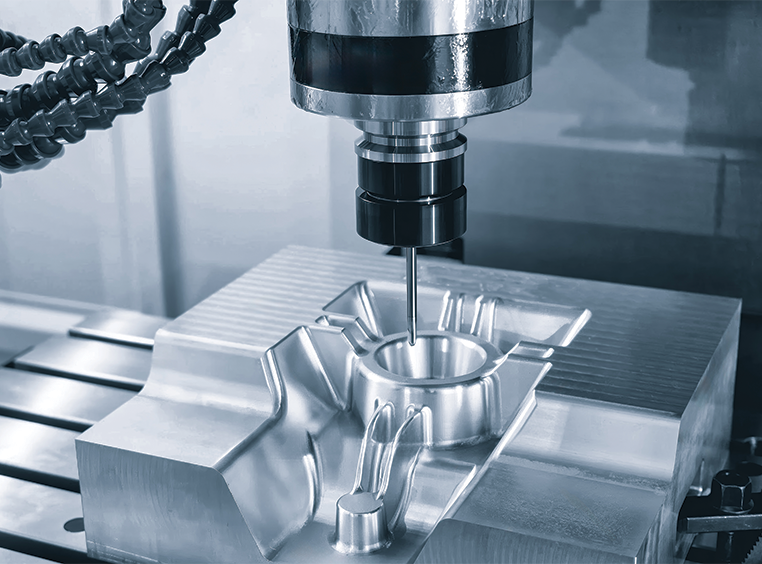

The TCV540 Series is a high-speed, precision vertical machining center engineered with a compact, rigid structure for exceptional accuracy and performance. Built on a one-piece Meehanite cast iron base and FEM-optimized column, the machine offers outstanding stiffness and vibration damping for stable, high-speed cutting. Its C-frame construction and wide-span linear guideways deliver smooth, backlash-free movement across all axes, ensuring superior part accuracy and surface finish. The TCV540’s low center of gravity and precision-ground ballscrews enhance dynamic rigidity, while its robust table design provides generous load capacity and optimized accessibility—making it ideal for high-precision, high-productivity operations and automation-ready environments.

To support continuous, efficient machining, the TCV540 features a high-performance automatic tool changer (ATC) designed for rapid, reliable tool exchange. Available with 16- or 24-tool magazines, the servo-driven ATC ensures fast, stable tool changes with a bi-directional random access system and a balanced double-gripper arm. Each tool change is smooth and precise, reducing cycle time and minimizing wear on the spindle. Combined with real-time tool monitoring, air-blow cleaning, and predictive maintenance support, the TCV540’s intelligent ATC system maximizes uptime and throughput—delivering consistent productivity in demanding production environments.
