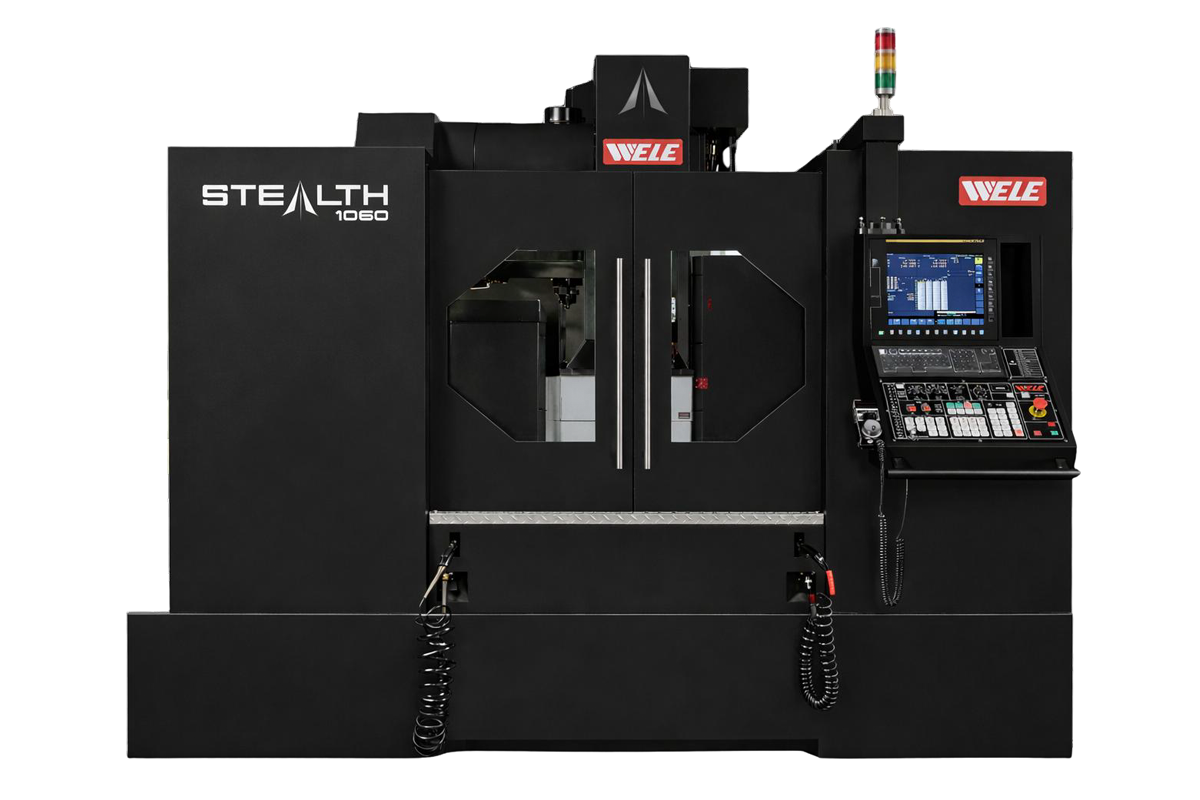

STEALTH 1060

STEALTH 1060

The STEALTH 1060 Vertical Machining Center delivers best-in-class travel, table size, and load capacity to handle a wide range of workpieces with confidence. Its rigid Meehanite cast iron base and extra-wide inverted Y-column provide exceptional stability, tensile strength, and vibration dampening for heavy cutting. Precision hand-scraped contact surfaces ensure long-term accuracy, durability, and consistent performance where it matters most.

 Request a Quote
Models & Specs| News Request Quote

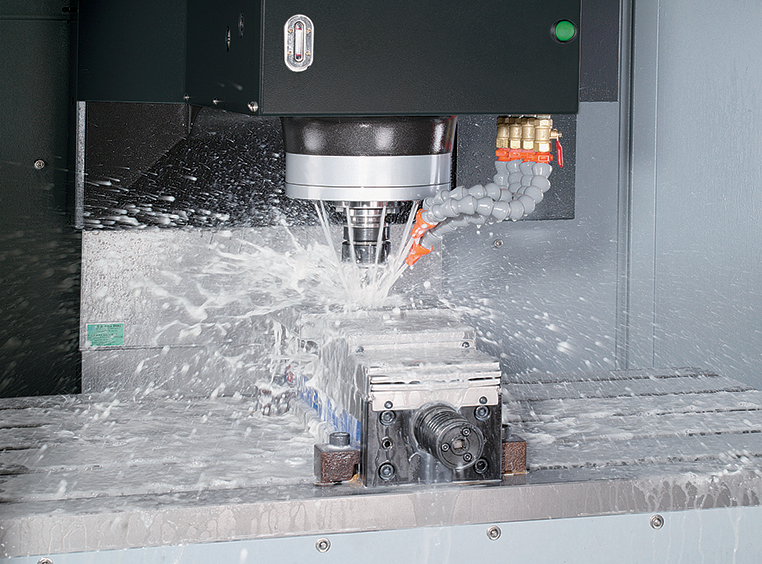

STEALTH Cutting

Built for Superior Speed & Performance

  • FANUC OiMF PLUS CNC Machine Control
  • High Speed – 25 HP - 12,000RPM Direct Drive Spindle – Big Plus CAT40 Spindle Taper
  • (30) Thirty Pocket Standard Automatic Tool
  • Precision Hand Scraped Machine Metal to Metal Contact Points for Long Term Accuracy, Vibration Dampening and Extended Machine Life
  • Built in WELE iSmartTune Controller Package with Tool Life Monitoring and ATC Recovery Suite
  • Standard FANUC Package Includes 200 Block Look Ahead Function and 2MB Memory Standard
  • Embedded Machine Operator and Maintenance Manuals Resident on Controller
  • Dual Chip Auger with X-Axis Auger as Standard Feature. Includes Coolant Wash Down
  • 300 PSI Coolant Through Spindle System Included
  • BLUM ZX-Speed ATLM & TC50 Probe Included

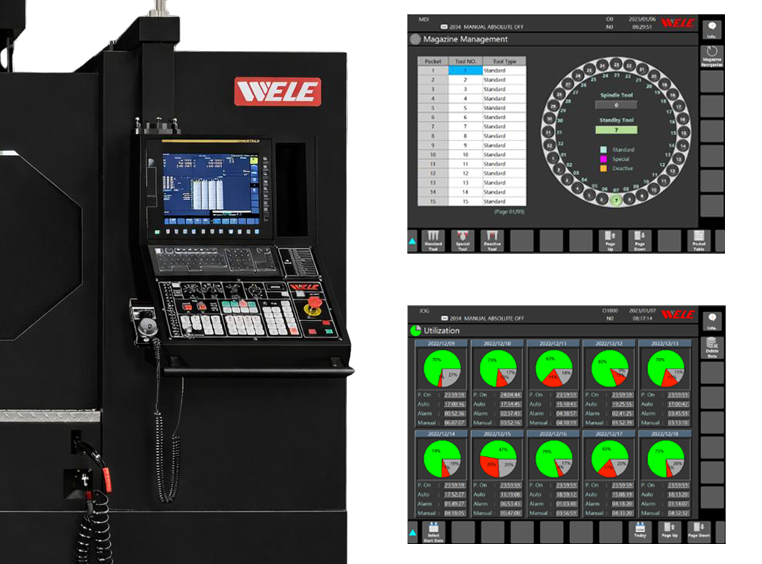

Stealth Controller

User-Friendly Operation

The OiMF PLUS Controller on the STEALTH 1060 delivers powerful, user-friendly CNC performance built on the latest platform from FANUC. Featuring a large 15-inch touchscreen interface and WELE’s built-in Operation Supporter package, this upgraded control system provides a full suite of machine monitoring, diagnostics, and productivity-enhancing functions. A full keyboard CNC pendant with hard push buttons ensures intuitive operation, combining modern touchscreen convenience with the tactile reliability manufacturers demand for precision machining and daily production efficiency.

Standard FANUC OiMF PLUS Features

  • AI Contour Control II, Smooth Tolerance Control, and Control Nano Interpolation
  • Built in Reporting that Monitors Productivity and Tool Life
  • Built-In Maintenance functions to access machine I/O list, M Code list, PLC Status Data, and machine component layout
  • Built-In Probe & Tool Setter GUI for fast setup and macro integration to CNC programs
  • FANUC Picture Allows Generation of Custom Control Objects – WELE iSmartTune
  • Upgraded CNC Operation screen with access to cutting M codes, tool data, & servo load monitoring
  • A Simplified Repair Process with Step-Through Procedure for Common Issues such as ATC Recovery
  • On Board Storage and Display of all Machine Maintenance and Operation and Tooling Manuals

Models & Specifications
X-axis Travelin (mm)40.2 (1,020)
Y-axis Travelin (mm)23.6" (600)
Z-axis Travelin (mm)23.6" (600)
Distance, Spindle Nose to Table Topin (mm)4.1 - 27.7 (105 - 705)
Table Height From Floorin (mm)36.2 (920)
Spindle TaperCAT40 (Big Plus)
Spindle MotorHP25
Spindle Speed Max.RPM12,000
Spindle TypeDirect Drive Motor
Rapid Feedrate X, Ym/min (ipm)36 (1417)
Rapid Feedrate Zm/min (ipm)30 (1181)
Chain Type ATC30 Pockets
Max. Tool Diameter (Tool in Adjacent Pocket)in (mm)2.99 (76)
Max. Tool Diameter (Adjacent Pocket Empty)in (mm)5.0 (127)
Max. Tool Length from Gage Linein (mm)9.8 (250)
Max. Tool Weightlbs (kg)15.4 (7)
