FH800SX-i

The JTEKT FH800SX-i is a powerful, high-speed horizontal machining center featuring a 8,000 RPM spindle, or optional 15,000 RPM high-torque spindle, and a rapid feedrate of 2,127 ipm (54 m/min). This machine has dual ballscrew drives on the Y-Axis and Z-Axis, along with a Meehanite cast iron base for enhanced rigidity. With its remarkably expansive work envelope, the FH800SX-i excels at machining large parts with ease and flexibility.

 Request a Quote
Models & Specs| News Request Quote

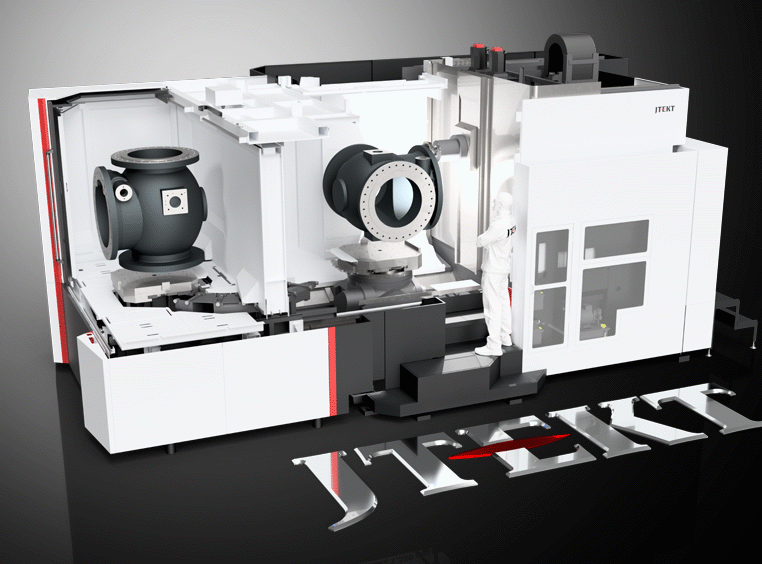

FH800 Valve

Unmatched Capacity for Large Workpieces

The FH800SX-i horizontal machining center is engineered to efficiently machine the most demanding, largest components in its class. With a maximum workpiece swing of Ø1,500 mm and a heavy-duty load capacity of 2,500 kg, it provides the strength and stability required for oversized parts in aerospace, construction, automotive, and energy applications.

Along with its expansive work envelope and rapid federate of 2,127 ipm (54 m/min) – the FH800SX-i features dual ballscrew drives on the Y-Axis and Z-Axis, along with a Meehanite cast iron base for utmost rigidity. From massive structural components to high-precision production runs, the FH800SX-i offers unmatched versatility, productivity, and reliability for large-part machining.

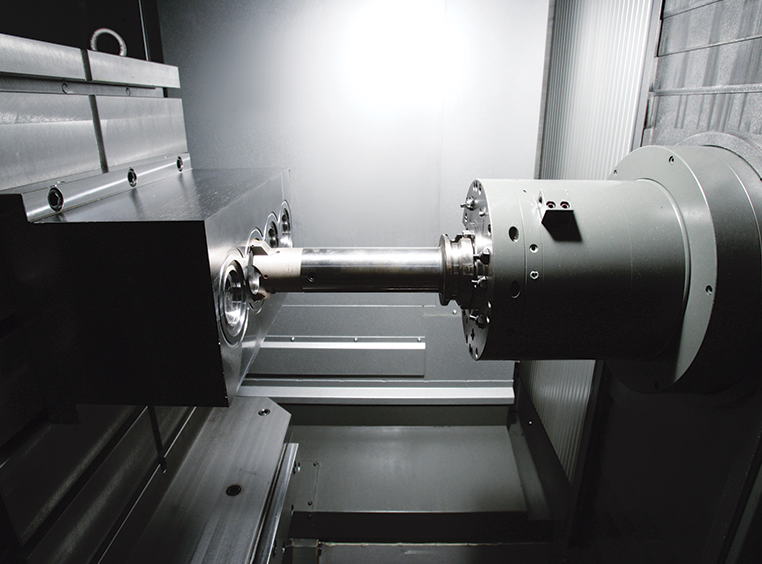

FH800 Spindle 762x564

Spindle Options

The standard FH800SX-i configuration features a 8,000 RPM spindle. For even greater power and performance, a high-torque 15,000 RPM spindle is available as an option.

8,000 RPM Spindle

  • Dual Cylindrical Roller Bearing
  • Industry Leading 76 in³ MRR
  • 110mm Bearing Inner Diameter
  • Removable Spindle Taper Design
  • Six Spindle Carriage Guide Trucks

15,000 RPM Spindle

  • Four Front Spindle Bearings
  • Variable Hydraulic Preload
  • 120mm Bearing Inner Diameter
  • Removable Spindle Taper Design
  • Six Spindle Carriage Guide Trucks
Toyopuc Section Image 01

Simple Operation. Advanced Insight.

JTEKT’s TOYOPUC-Touch HMI is a fully functional touch screen overlay, running on FANUC 31iMB Plus. The system is easy to learn and navigate, and includes built in advanced functionality for machine operators, maintenance technicians, and manufacturing management.

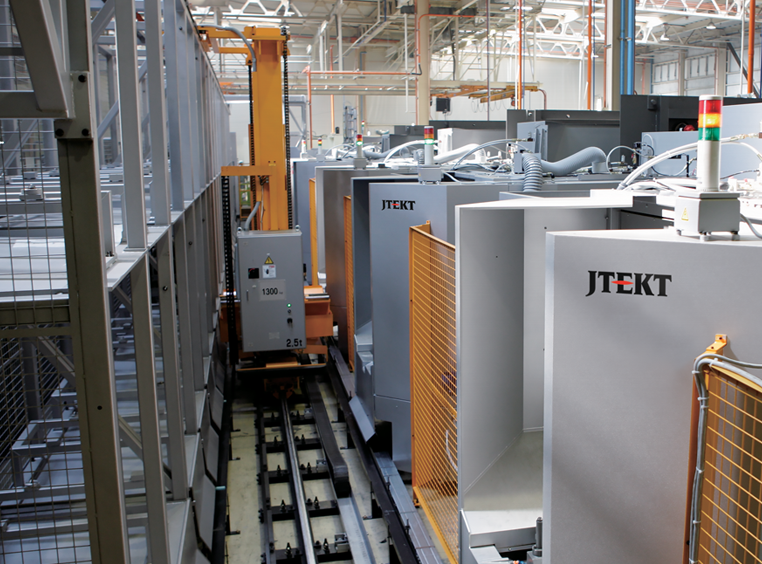

RGV Automation

Stay Ahead of the Curve With JTEKT Automation

From rail-guided vehicles to vertical pallet pools and advanced robotics – combining JTEKT’s renowned automation solutions with the FH800SX-i will vastly transform your production processes, leading to new levels of manufacturing efficiency. From managing multiple machines through a central PC for production scheduling, to slashing set-up times and improving throughput – our highly flexible automation solutions are designed to streamline operations and increase capacity.

Models & Specifications
Pallet Sizein (mm)31.50 x 31.50 (800 x 800)
X-axis Travel (column)in (mm)57.09 (1,450)
Y-axis Travel (spindle head)in (mm)49.21 (1,250)
Z-axis Travel (work table)in (mm)61.02 (1,550)
Max. Workpiece Swing (diameter)in (mm)59.05 (1,500)
Max. Workpiece Heightin (mm)59.05 (1,500)
Maximum Load on Palletlb (kg)5,500 (2,500)
Spindle Torqueft-lb (Nm)887 (1,202)
Spindle SpeedRPM8,000, 15,000
Spindle Taper-CAT50
Rapid Feedrate (X,Y and Z)ipm (m/min)2,126 (54)
Tool Storage Capacitynumber60 , 121, 240, 330
