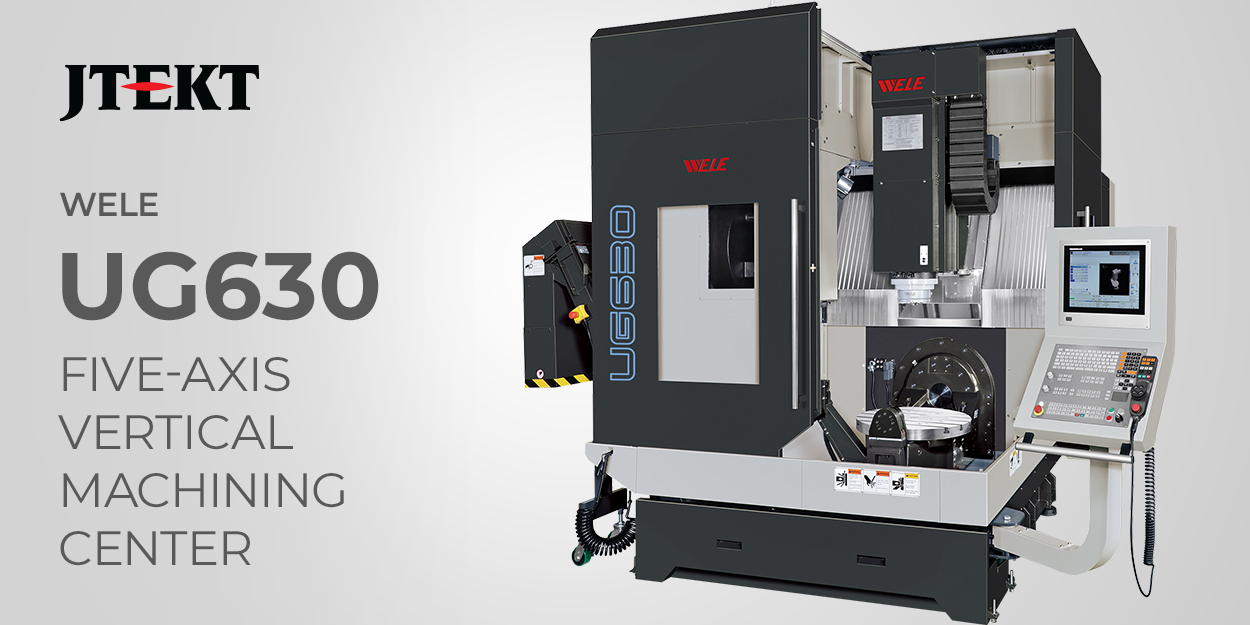

WELE UG630 Vertical Machining Center

Advanced Multi-Axis Capability - JTEKT Machinery proudly showcases the WELE UG630 Vertical Machining Center (VMC)—a high-precision, multi-axis solution engineered for manufacturers who demand flexibility, accuracy, and efficiency in a single platform. Designed with an advanced overhead gantry structure and an integrated trunnion rotary table, the UG630 enables multiple operations in one setup, reducing cycle times and boosting overall productivity.

Rigid Construction for Superior Accuracy

Built on a rigid Meehanite® cast-iron base, the UG630 delivers exceptional vibration damping, stability, and load capacity—making it equally capable in high-speed machining, heavy-duty cutting, and full five-axis contouring applications. Large, precision spindle bearings further enhance rigidity and accuracy, ensuring consistent performance across a wide range of materials and machining environments.

Intelligent CNC Control & Motion Range

The UG630 is equipped with the Heidenhain TNC 640 CNC control, featuring an intuitive touchscreen interface that maximizes programming efficiency and real-time machine feedback. Its X/Y/Z travels measure 640 mm (25.1"), 520 mm (20.4"), and 460 mm (18.1") respectively, while the trunnion table provides a full 360° C-axis rotation and a B-axis swivel range of -50° to +110°, allowing superior tool access to complex surfaces.

Speed, Power & Productivity Enhancements

To support demanding production requirements, the machine delivers rapid traverse rates of 40 m/min (1,575 in/min) across all linear axes and features a powerful 38-hp spindle capable of reaching 15,000 rpm. Additional highlights include a 60-pocket chain-type automatic tool changer and a Blum probing and tool-setting package for streamlined setup and in-process inspection. The clamping area of 650 mm (25.5") accommodates a broad range of workpieces with ease.

Hand-Scraped Precision, Built to Last

Every UG630 is manufactured under strict quality standards, with all metal-to-metal contact surfaces hand-scraped for optimal alignment, geometry, and long-term precision. Engineered for reliability and accuracy, the WELE UG630 delivers the durability, performance, and versatility required to support today’s—and tomorrow’s—most demanding machining applications.
